Safe Startup Procedure and Key Operational Parameters for a Petroleum Coke Calcining Rotary Kiln
Pre-Startup Safety Inspection
Before initiating the startup sequence, a comprehensive safety inspection is mandatory:
Structural Integrity: Inspect the kiln shell, hood, and covers for cracks, holes, or damage.
Support System: Verify the condition of supporting rollers, thrust rollers, and their alignment.
Seals & Access: Check all seals (especially at the inlet and discharge ends) and ensure access doors are secure.
Auxiliary Systems: Confirm that all safety interlocks, emergency stops, gas detection systems (if applicable), fire protection, and ventilation are functional.
Personal Protective Equipment (PPE): Ensure all personnel are equipped with appropriate PPE.
Startup Procedure
Charge Loading: Begin by evenly distributing raw (green) petroleum coke into the kiln. Charging in controlled layers helps prevent bridging and ensures uniform heat transfer. Document the initial charge quantity.
Fuel System Preparation: Establish the proper fuel-to-air ratio based on operating guidelines. For gas or oil-fired burners, verify fuel pressure and purge lines.
Ignition: Using an approved ignition device (e.g., flame gun or spark igniter), light the pilot burner. Carefully introduce the main fuel flow and establish a stable, small flame at the kiln head (discharge end). Monitor closely until combustion is stable.
Controlled Heating: Increase fuel input gradually to begin heating the kiln lining and charge. Simultaneously, start the kiln rotating at a very low speed.
Air Intake Management: In coordination with fuel increase, slowly open the primary air intake dampers. The objective is a slow, controlled temperature rise to avoid thermal shock to the refractory lining and prevent runaway combustion. Monitor the flame shape and color – it should be steady and luminous.
Volatile Matter Combustion: As the coke bed temperature rises (typically between 250°C and 700°C), volatile matter (VM) will be driven off and combust within the kiln. Use this supplementary heat carefully by adjusting fuel input accordingly. Monitor back pressure and off-gas composition.
Target Temperature Approach: Continue the gradual ramp-up until the calcination zone approaches the target temperature range (typically 1150-1250°C). During this phase, monitor the coke bed condition to prevent localized over-charring or powdering.
Once the target calcination temperature is achieved and stable, adjust the kiln rotation speed, fuel rate, and air flow to establish the designed operating setpoints for production.
Begin continuous feeding of raw coke according to the designed feed rate.

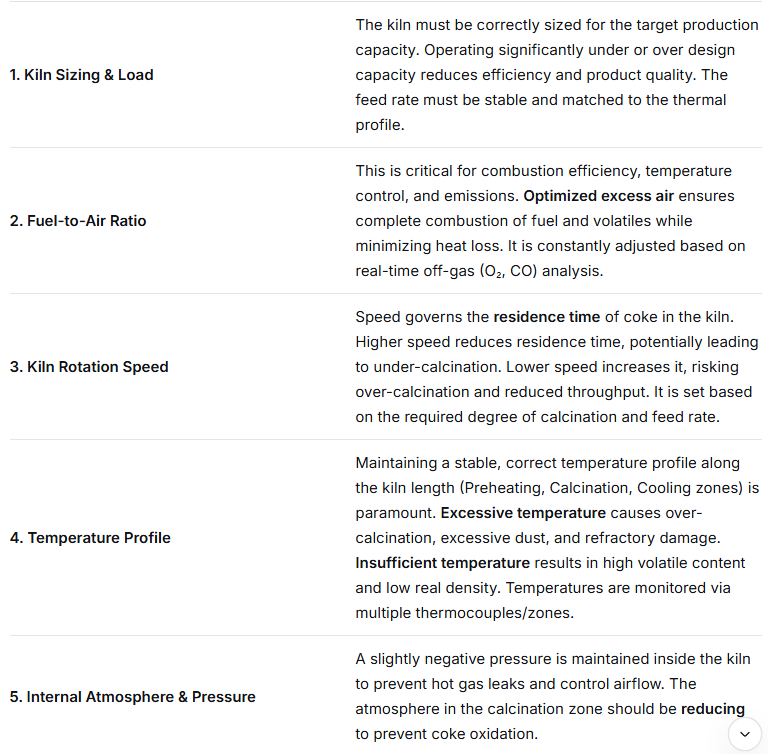

Key Parameters for Successful Operation
Conclusion
The successful and safe startup of a petroleum coke calcining rotary kiln requires a methodical, controlled approach to avoid equipment damage and ensure product quality. The transition from a cold state to stable operation hinges on gradual heating and careful coordination of fuel, air, and rotation. Sustainable operation depends on the precise, continuous monitoring and adjustment of key parameters—temperature profile, residence time (rotation speed), and combustion stoichiometry (fuel/air ratio)—within their optimal ranges. Strict adherence to safety protocols throughout the process is non-negotiable.
